4 Git concepts and architecture¶

4.1 The Three Trees¶

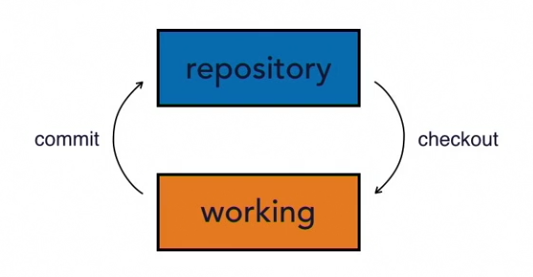

Two-tree architecutre (other VCS):
- Repository and working copy are the two trees.
- Directories and files can be thought of as trees
- “checkout” copies from repository to working directory
- make changes, and “commit” those changes back to the repository
Git: Three-tree architecutre:
- Repository, Staging index, Working trees
- Working directory: contains changes that may not be tracked
- Staging index: changes that we are about to commit
- Repository: actually being tracked

Workflow for three-tree architecture.

Suppose we create file.txt in our working directory (call these changes A).
git add file.txt stages A in the staging index.
git commit to push A to the repository.
Suppose you make changes to file.txt, call these changes B.
Again use add and commit to stage and push B respectively.
Now the repository has two sets of changes in it, A and B. This is the typical workflow to make changes to a repository. Use git log to view these changes which is referenced by git using a unique number.

Previously, we refered to the changes as A, B, C. These changes can be on a single file, or several files in a directory, or across directories.
Git generates a checksum for each change set.
Checksum algorithms convert data into a simple number.
- Same data always equals same checksum.
- Data integrity is fundamental.
- Changing data changes checksum.
Git uses SHA-1 hash algorithm to create checksums. “What’s the SHA value of that commit?”
40-character hexadecimal string. = f(all the data, all the changes). f is one-to-one.
f is also a function of (parent (SHA value of previous snapshot), author, commit message)
- Thus not just the change set, but data integrity of the history of change sets is built in.

Pointer to tip of current branch in repository
Last state of repository, what was last checked out
Points to parent of next commit where writing commits takes place
By default, the branch we’re working on is called master. We start with our first commit. At the start, the HEAD pointer points to that commit.
When a new commit is made, a new SHA is created, and git moves the HEAD pointer to this new SHA value.
When another is made, it does the same and moves the head pointer again.
If a new branch is created, the HEAD moves to commits on that branch.
